Image Part No. RoHS/Reach Package Available Tol./Stability Frequency
CS12
 Compliant

1.2 X 1.0 Ceramic
4 PAD SMD

 ±7ppm / ±10ppm 36.000MHz ~ 80.000MHz

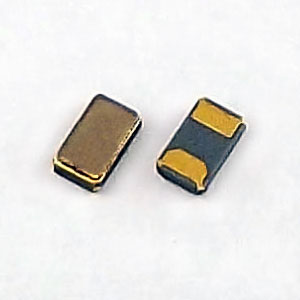

CS1210J
 Compliant

1.27 X 1.05 Ceramic
4 PAD SMD

 ±20ppm / ±50ppm 32.768kHz
CS1610
 Compliant 1.6 X 1.0 Ceramic
2 PAD SMD		 ±20ppm 32.768kHz
CT16
 Compliant 1.6 X 1.0 Ceramic
4 PAD SMD
Temperature sensing		 ±10ppm 26.000MHz ~ 54.000MHz
CS16
 Compliant 1.6 X 1.2 Ceramic
4 PAD SMD
AEC-Q200 version available		 ±10ppm / ±5ppm 24.000MHz ~ 60.000MHz
CS2012
 Compliant 2.0 X 1.2 Ceramic
2 PAD SMD		 ±10ppm /±20ppm /±50ppm 32.768kHz
CS2012J
 Compliant

2.0 X 1.2 Ceramic
4 PAD SMD

 ±20ppm / ±50ppm 32.768kHz
CT21
 Compliant 2.0 X 1.6 Ceramic
4 PAD SMD
Temperature sensing		 ±10ppm 19.200MHz ~ 54.000MHz
CS21
 Compliant 2.0 X 1.6 Ceramic
4 PAD SMD
AEC-Q200 version available		 ±10ppm / ±5ppm 16.000MHz ~ 60.000MHz

CT22

Compliant 2.5 X 2.0 Ceramic
4 PAD SMD
Temperature sensing		 ±10ppm 12.000MHz ~ 54.000MHz
CS22
 Compliant 2.5 X 2.0 Ceramic
4 PAD SMD
AEC-Q200 version available		 ±10ppm / ±5ppm 12.000MHz ~ 80.000MHz
CX31
 Compliant 3.2 X 1.5 Ceramic
2 PAD SMD		 ±10ppm 32.768kHz
CS31
 Compliant 3.2 X 1.5 Ceramic
2 PAD SMD		 ±10ppm 32.768kHz
CX32
 Compliant 3.2 X 2.5 Ceramic
4 PAD SMD		 ±10ppm / ±5ppm 8.000MHz ~ 60.000MHz
CS32
 Compliant 3.2 X 2.5 Ceramic
4 PAD SMD
AEC-Q200 version available		 ±10ppm / ±5ppm 10.000MHz ~ 156.250MHz
CS32H
 Compliant 3.2 X 2.5 Ceramic
4 PAD SMD		 ±10ppm / ±20ppm 20.000MHz ~ 300.000MHz
CS42
 Compliant 4.0 X 2.5 Ceramic
4 PAD SMD		 ±10ppm / ±10ppm 12.000MHz ~ 50.000MHz
CX53A
 Compliant 5.0 X 3.2 Ceramic
4 PAD SMD		 ±10ppm / ±5ppm 7.3728MHz ~ 40.000MHz
CS53A
 Compliant 5.0 X 3.2 Ceramic
4 PAD SMD		 ±10ppm / ±5ppm 7.3728MHz ~ 270.000MHz
CS53B
Compliant 5.0 X 3.2 Ceramic
2 PAD SMD		 ±10ppm / ±10ppm 7.3728MHz ~ 156.250MHz
CS63A
 Compliant 6.0 X 3.5 Ceramic
4 PAD SMD		 ±10ppm / ±5ppm 7.000MHz ~ 200.000MHz
CS63B
 Compliant 6.0 X 3.5 Ceramic
2 PAD SMD		 ±10ppm / ±10ppm 7.000MHz ~ 200.000MHz
CS63C
 Compliant 6.0 X 3.5 Ceramic
2 PAD SMD		 ±10ppm / ±10ppm 7.000MHz ~ 200.000MHz
CS71
 Compliant 7.0 X 1.5 Plastic
4 PAD SMD		 ±20ppm 32.768kHz
CS75
 Compliant 7.0 X 5.0 Ceramic
4 PAD SMD		 ±10ppm / ±10ppm 6.000MHz ~ 160.000MHz
CS83
 Compliant 8.0 X 3.7 Plastic
4 PAD SMD		 ±20ppm 32.768kHz
CS84
 Compliant 8.0 X 4.5 Ceramic
2 PAD SMD		 ±10ppm / ±10ppm 8.000MHz ~ 80.000MHz
CS1041
 Compliant 10.4 X 4.0 Plastic
4 PAD SMD		 ±20ppm 32.768kHz
CS1042
 Compliant 10.4 X 4.0 Plastic
4 PAD SMD		 ±20ppm 32.768kHz
TS-SMD
 Compliant 12.5 X 4.6 Plastic
4 PAD SMD		 ±15ppm / ±20ppm 3.579MHz ~ 70.000MHz
SMTF
 Compliant 5.2 X 1.4 Cylinder SMD
Flat surface		 ±20ppm 30.000kHz ~ 200.000kHz
HC49/SMD
 Compliant Low Profile
molded SMD base - 2 PAD SMD		 ±10ppm / ±20ppm 3.000MHz ~ 150.000MHz
UM/SMD
 Compliant Low Profile
molded SMD base - 2 PAD SMD		 ±10ppm / ±20ppm 4.000MHz ~ 40.000MHz
HC49/SMD4
 Compliant Low Profile
molded SMD base - 4 PAD SMD		 ±5ppm / ±10ppm 3.500MHz ~ 100.000MHz
HC49/S
 Compliant Low Profile
2 pin through hole		 ±10ppm / ±10ppm 3.000MHz ~ 150.000MHz
HC49/U
 Compliant 2 pin through hole ±5ppm / ±5ppm 1.800MHz ~ 176.000MHz
UM-1
 Compliant 2 pin through hole
miniature		 ±5ppm / ±5ppm 4.000MHz ~ 200.000MHz
1 X 5
 Compliant 1.5 X 5.1 Cylinder
tuning fork		 ±20ppm 32.768kHz
2 X 6
 Compliant 2.0 X 6.3 Cylinder
tuning fork		 ±20ppm 32.768kHz (STD)
(30kHz ~ 360kHz available)
2 X 6SMD
 Compliant 2.0 X 6.3 Cylinder
SMD		 ±20ppm 30kHz ~ 360kHz
3 X 8
 Compliant 3.1 X 8.3 Cylinder
tuning fork		 ±20ppm 32.768kHz (STD)
(30kHz ~ 360kHz available)
3 X 9
 Compliant 3.1 X 9.3 Cylinder
tuning fork		 ±15ppm / ±20ppm 3.6864MHz ~ 50.000MHz
